The SDTM Mapping Process Simplified

SDTM mapping can be one of the most challenging programming problems in a clinical trial build. It involves mapping datasets from a non-CDISC structure, for example the structure used in your clinical data management system, to the CDISC SDTM structure, as required by CDISC standards

These standards were put in place to make it easier for a regulator to understand and process clinical trial data, and they must be adhered to. Best practice is always to align with CDISC standards before you collect any patient data.

The SDTM Implementation Guide

Before you begin to map or convert data to SDTM, you should have a basic understanding of how SDTM works. The SDTM Implementation Guide (SDTMIG) is an essential resource to help you with this.

The implementation guide gives a detailed overview of SDTM specifications and metadata for all SDTM domains. It includes guidance for producing SDTM datasets. If you get familiar with the SDTMIG before you start SDTM mapping, it’ll make the whole process much smoother.

What’s a Typical SDTM Mapping Process?

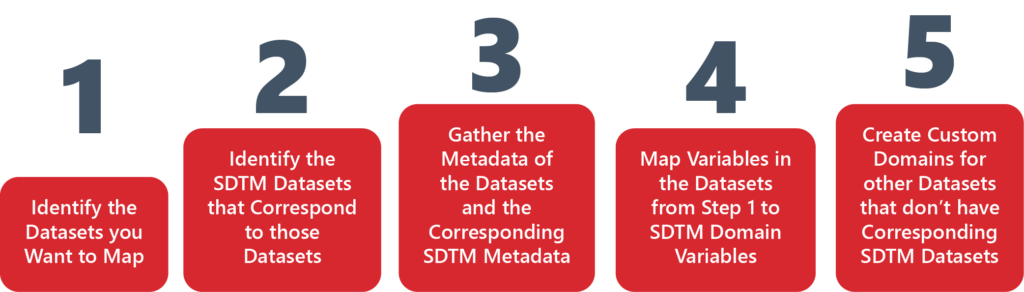

The SDTM mapping process usually looks like this:

  1. Identify the datasets you want to map.
  1. Identify the SDTM datasets that correspond to those datasets.
  1. Gather the metadata of the datasets and the corresponding SDTM metadata.
  1. Map variables in the datasets from step one to SDTM domain variables.
  1. Create custom domains for other datasets that don’t have corresponding SDTM datasets.
SDTM Mapping Process

Typical Mapping Scenarios

According to a paper published by PharmaSUG , the mapping itself can involve 9 possible scenarios.

It’s a good idea to become familiar with these scenarios before you begin mapping, so you don’t run into any surprises along the way.

  1. The direct carry forward

These are variables that are already SDTM compliant. These can be directly carried forward to the SDTM datasets, and don’t need to be modified.

  1. The variable rename

Some variables need to be renamed in order to map to the corresponding SDTM variable. For example, if the original variable is GENDER, it should be renamed SEX to comply with SDTM standards.

  1. The variable attribute change

As well as variable names, variable attributes must be mapped. Attributes such as label, type, length, and format must comply with the SDTM attributes.

  1. The reformat

The value that is represented doesn’t change, but the format it’s stored in does. For example, converting a SAS date to an ISO 8601 format character string.

  1. The combine

In some cases, multiple variables must be combined to form a single SDTM variable.

  1. The split

A non-SDTM variable might need to be split into two or more SDTM variables to comply with SDTM standards.

  1. The derivation

Some SDTM variables are obtained by deriving a conclusion from data in the non-SDTM dataset. For example, using date of birth and study start date to derive a patient’s age, instead of manually entering the age upfront.

  1. The variable value map and new code list application

Some variable values need to be recoded or mapped to match with the values of a corresponding SDTM variable. This mapping is recommended for variables with a code list attached that has non-extensible controlled terminology.

It’s also advisable to map all values in the controlled terminology, rather than just for the values present in the dataset. This would cover values that are not in the dataset currently but may come in during future dataset updates.

  1. The horizontal-to-vertical data structure transpose

If the structure of the non-CDISC dataset is completely different from its corresponding SDTM dataset, you may need to transform it to one that is SDTM-compliant. The Vital Signs dataset is a good example. When data is collected in wide form, every test and recorded value is stored in separate variables. As SDTM requires data to be stored in lean form, the dataset must be transposed to have the tests, values, and unit under three variables. If there are variables that cannot be mapped to an SDTM variable, they would go into supplemental qualifiers.

SDTM Mapping Specification Document

The SDTM mapping specification is an important document that’s used when designing the process by which raw data will be converted to SDTM. This document specifies how the raw data is to be converted, and is used by the SDTM programmer and testing team.

It can be created manually as follows:

  1. Examine the CRFs and raw data and identify which SDTM domains you need.
  1. Against each SDTM domain, note which raw dataset will provide the input data.
  1. Against each SDTM domain, list all variables and describe how they are to be programmed.

This manual process can be made easier using a tool like Pinnacle 21 which automatically generates the document from a dataset mapper plug-in. P21 also lets you visualize the specification as you go.
